Elliptical Double-D coil design
Broader sweep
Narrower target pinpoint
Better penetration in mineralized ground
30-hour battery life on four AA alkaline batteries

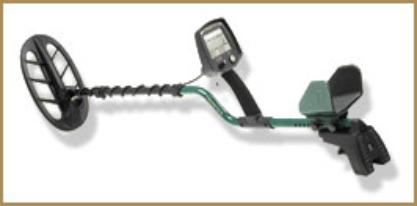

A well-balanced, responsive and easy-to-use metal detector with an
ergonomic design for hand, wrist and arm comfort. Excellent target
separation with crisp, smooth target feedback. Display features numeric
target identification and ground mineralization scale which narrows
prospector's search for gold veins and gives better response to deep
targets. It also features a message center to assist with ground
cancellation and gives target depth display in Pin Point Mode. Greater
sensitivity in highly mineralized soils. Intuitive menu-based programming
system. Trigger-activated target pinpoint and ground cancellation.
Squelch-Tek® electromagnetic interference reduction. Thirty hours of
battery life on four "AA" batteries. This machine is hot on buttons and
we're impressed with the depth you can get out of it even it hot soil!
Comes with standard 11" DD coil. FREE SHIPPING!
MECHANICAL: S-rod with electronics housing mounted on handgrip, 3-piece breakdown, batteries under elbow, 2-
way armrest adjustment -- forward/backward & around forearm.
SEARCHCOIL: 11” (28 cm) open-frame elliptical double-D, waterproof
BATTERIES: 4 AA’s, alkaline or NiMH (not included).
WEIGHT: 3.5 pounds (1.6 kg) with alkaline batteries installed.
STATIC BALANCE: force in vertical plane normal to elbow .47 pounds (.22 kg). Varies with adjustment and user’
s stance and arm/hand physiology.
DYNAMIC BALANCE: axial moment, .29 foot-pounds (.39 newton-meters).
Varies with adjustment and user’s stance and arm/hand physiology.
SWEEP EFFORT: lateral moment 5.2 foot-pounds (7.1 newton-meters).
OPERATING FEATURES
USER INTERFACE: Menu-driven. Entire menu is always visible. Where you are in the menu is always indicated.
ALL METALS MODE: first derivative (single-filter) motion.
DISCRIMINATION MODE: second derivative (two-filter) motion, with selection of target identification tones and
sampling methods.
PINPOINT FEATURE: trigger-actuated, fully static (non-motion) with variable pitch.
GROUND CANCELLATION: trigger-actuated computerized, or manual.
VISUAL TARGET I.D.: 0-99 plus eight target category indicators.
MINERALIZATION READOUT: ground cancellation phase 0-99, and mineral concentration bar graph.
FREQUENCY SHIFTING: seven selections (to avoid electrical interference)
PERFORMANCE
OPERATING PRINCIPLE: VLF induction balance
OPERATING FREQUENCY: nominal 13 kHz, quartz crystal timing reference
BASIC SENSITIVITY: 5 x 109 root Hertz (detectivity)
LAG COEFFICIENT: 70 milliseconds
REACTIVE OVERLOAD: approximately 10,000 micro-cgs units (volume susceptibility)
RESISTIVE OVERLOAD: approximately 1,200 micro-cgs units (volume susceptibility)
GROUND CANCELLATION RANGE: From ferrite to salt, inclusive
DISCRIMINATION GROUND SUPPRESSION: combination of second and third order methods
ID GROUND SUPPRESSION: third order
BATTERY LIFE: typically 40 hours with good quality alkalines, somewhat less with NiMH rechargeables.
OPERATING TEMP RANGE: -4 to +122 degrees F (-20 to +50 degrees C)
OPERATING HUMIDITY RANGE: 0-90% non-condensing
Broader sweep
Narrower target pinpoint
Better penetration in mineralized ground
30-hour battery life on four AA alkaline batteries
A well-balanced, responsive and easy-to-use metal detector with an
ergonomic design for hand, wrist and arm comfort. Excellent target
separation with crisp, smooth target feedback. Display features numeric
target identification and ground mineralization scale which narrows
prospector's search for gold veins and gives better response to deep
targets. It also features a message center to assist with ground
cancellation and gives target depth display in Pin Point Mode. Greater
sensitivity in highly mineralized soils. Intuitive menu-based programming
system. Trigger-activated target pinpoint and ground cancellation.
Squelch-Tek® electromagnetic interference reduction. Thirty hours of
battery life on four "AA" batteries. This machine is hot on buttons and
we're impressed with the depth you can get out of it even it hot soil!
Comes with standard 11" DD coil. FREE SHIPPING!
MECHANICAL: S-rod with electronics housing mounted on handgrip, 3-piece breakdown, batteries under elbow, 2-
way armrest adjustment -- forward/backward & around forearm.
SEARCHCOIL: 11” (28 cm) open-frame elliptical double-D, waterproof
BATTERIES: 4 AA’s, alkaline or NiMH (not included).
WEIGHT: 3.5 pounds (1.6 kg) with alkaline batteries installed.
STATIC BALANCE: force in vertical plane normal to elbow .47 pounds (.22 kg). Varies with adjustment and user’
s stance and arm/hand physiology.
DYNAMIC BALANCE: axial moment, .29 foot-pounds (.39 newton-meters).
Varies with adjustment and user’s stance and arm/hand physiology.
SWEEP EFFORT: lateral moment 5.2 foot-pounds (7.1 newton-meters).
OPERATING FEATURES
USER INTERFACE: Menu-driven. Entire menu is always visible. Where you are in the menu is always indicated.
ALL METALS MODE: first derivative (single-filter) motion.
DISCRIMINATION MODE: second derivative (two-filter) motion, with selection of target identification tones and
sampling methods.
PINPOINT FEATURE: trigger-actuated, fully static (non-motion) with variable pitch.
GROUND CANCELLATION: trigger-actuated computerized, or manual.
VISUAL TARGET I.D.: 0-99 plus eight target category indicators.
MINERALIZATION READOUT: ground cancellation phase 0-99, and mineral concentration bar graph.
FREQUENCY SHIFTING: seven selections (to avoid electrical interference)
PERFORMANCE
OPERATING PRINCIPLE: VLF induction balance
OPERATING FREQUENCY: nominal 13 kHz, quartz crystal timing reference
BASIC SENSITIVITY: 5 x 109 root Hertz (detectivity)
LAG COEFFICIENT: 70 milliseconds
REACTIVE OVERLOAD: approximately 10,000 micro-cgs units (volume susceptibility)
RESISTIVE OVERLOAD: approximately 1,200 micro-cgs units (volume susceptibility)
GROUND CANCELLATION RANGE: From ferrite to salt, inclusive
DISCRIMINATION GROUND SUPPRESSION: combination of second and third order methods
ID GROUND SUPPRESSION: third order
BATTERY LIFE: typically 40 hours with good quality alkalines, somewhat less with NiMH rechargeables.
OPERATING TEMP RANGE: -4 to +122 degrees F (-20 to +50 degrees C)
OPERATING HUMIDITY RANGE: 0-90% non-condensing
Suggested Retail Price...........................$999.00
Our Price Shipped In Cont. US...............$899.10
Our Price Shipped Outside Cont. US.....$999.00
Our Price Shipped In Cont. US...............$899.10
Our Price Shipped Outside Cont. US.....$999.00
