Operating Frequency........   17.2 to 17.6 kHz

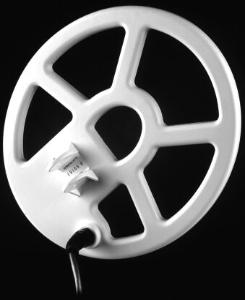

Searchcoil Type...............   Monolithic (Carbon Fiber)
Searchcoil Size................   9 x 8
Cable Length....................   Approx. 42 inches
Audio Frequency..............   Approx. 215 to 830 Hz
Audio Output....................   2¼" speaker and headphone jack
Headphone Compatibility..   ¼" stereo plug
Weight (may vary slightly)..   2.98 lbs
Battery Requirement.........   Eight AA (alkaline)
Battery Life (typical)...........   20 to 30 hours
Optimum Temp. Range.....   30° to 100° F
Optimum Humidity ............   0 to 75% R.H.
Operating Modes..............   Slow Auto-Tune All Metal
........................................   Silent Search Discriminate
........................................   Alternate Silent Search Discriminate
Pinpoint Mode..................   All Metal Fast Auto-Tune

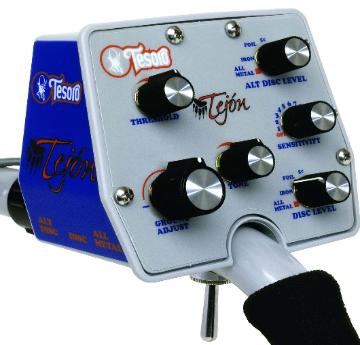

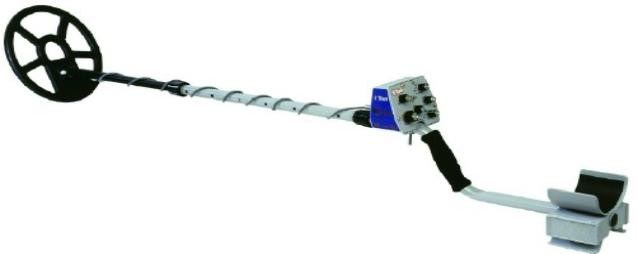

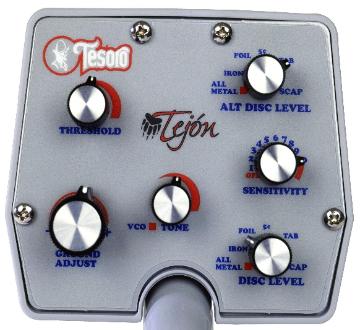

It’s Tejón Time

We are very proud to introduce the Tejón. It features a high output
transmit oscillator to push the signal deeper and an increased gain
for sensitivity to smaller items. The Tejón was designed from the
ground up with the coin and relic hunter in mind. It also features a
new color scheme from Tesoro- blue, gray and black. The Tejón was
over a year and a half in the design stages and represents a new
generation of Tesoro detectors.

Once you get past the new color scheme, the first thing that you will
notice is the lack of a mode switch on the faceplate. We have moved
it beneath the control housing so that you are able to switch modes
quickly. Pinpointing and checking your targets with the Alternate
Discrimination is a breeze.

The Tejón’s two discriminate modes are fully user definable. The
engineers at Tesoro have given the user the ability to set the
machine for their hunting needs. Each discriminate mode uses
ED180 circuitry. The regular discriminate also incorporates a full-
time all metal setting. Want to hunt in all metal and check the
targets for iron or discriminate out iron and perform a check for
high value silver or gold targets? It’s no problem for the Tejón.
Simply set the Discriminate and Alternate Discriminate modes for
your style of hunting and swing the coil. Then use the Trigger
Switch to quickly change modes to check your targets. Push the
trigger forward to activate the Alternate Discriminate or pull the
trigger back to pinpoint the target. The Tejón makes it fast and easy.

But the user definable features do not stop there. The Tejón has a
manually adjustable ground balance that works for both the All
Metal mode and both Discriminate modes. Using a three and three
quarter potentiometer, the Tejón will meet and defeat all soil
conditions and is suitable for any hunting style.

The Tejón also has an audio tone adjust. If you have trouble hearing
certain tones or have certain tones that you are more comfortable
with, the Tejón can meet you desires. Using the tone adjustment
control, you can switch from a normal tone with VCO pinpoint/all
metal to any one of thousands of different audio tones for the All
Metal and Discriminate modes. Fine tune the tone until it is right
for you and see how much easier it is to find, pinpoint and dig the
targets that you are looking for.

While the Tesoro Tejón was designed mostly for coin and relic
hunters, its user definable controls are simple and easy to use
making it able to handle just about any type of treasure hunting
that you may wish to try.

FEATURES

Dual ED180 Discrimination Circuits
Easy To Use Trigger Mode Switch
MAXBoost Sensitivity
Adjustable Audio Tone Control
3 3/4 Turn Ground Control
Compatable With Lobo SuperTRAQ Coils

LIFETIME WARRANTY
Suggested Retail Price $699.00
Our Price $594.15

SPECIFICATIONS

Operating Frequency........   14.3 kHz, 14.5 kHz, 14.7 kHz
Searchcoil Type...............   Monolithic (Carbon Fiber)
Searchcoil Size................   9 x 8
Cable Length....................   Approx. 3'
Audio Frequency..............   Approx. 293 Hz or VCO
Audio Output....................   1½" speaker and headphone jack
Headphone Compatibility..   ¼" stereo plug
Weight (may vary slightly)..   2.2 lbs
Battery Requirement.........   One 9 volt DC (alkaline)
Battery Life (typical)...........   10 to 20 hours
Optimum Temp. Range.....   30° to 100° F
Optimum Humidity ............   0 to 75% R.H.
Operating Modes..............   Threshold-based All Metal
........................................   Silent Search Discriminate

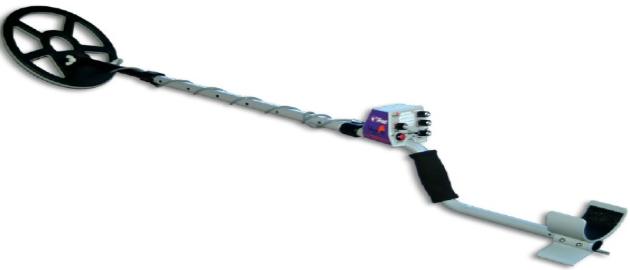

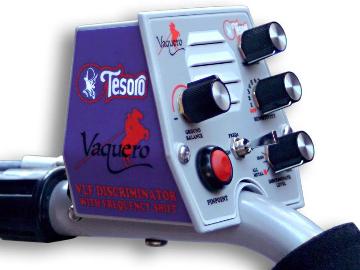

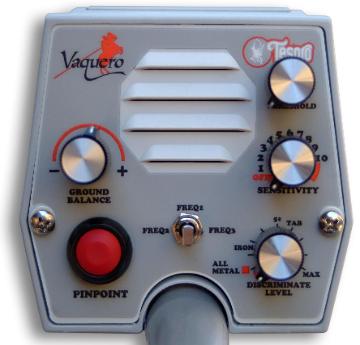

During the design phase of the Vaquero (pronounced va-care-oh),
we knew that it was going to be a very hard working detector. It is
designed as an all-around detector, able to do just about everything
that any detectorist could want to do. Vaquero is the Spanish word
for cowboy. When we think of hard work and the ability to take on
any kind of tough job, we think of the cowboys of the old west.

The main part of the Vaquero’s versatility is its three and three-
quarters manually adjusted ground balance. This will give the
detectorist the power to set up his machine to best suit the
mineralization conditions that he is working in and his personal
treasure hunting style. The Vaquero adds an ED180 discrimination
feature to filter the trash from the treasure and a Push Button
Pinpoint that makes digging up the goodies that much easier. The
discriminate knob is also used to switch into a threshold-based All
Metal Mode.

FEATURES

MicroMAX Design
VLF 14 kHz Frequency
One Drop-in 9V Battery
Variable Threshold
3 3/4 Turn External Ground Balance
Ultra-lightweight Design
9x8 Monolithic Coil
3-Piece Knockdown Pole
Lifetime Warranty

LIFETIME WARRANTY
Suggested Retail Price $525.00
Our Price (Standard Tone) $446.25

Our Price High Tone Model $461.25

SPECIFICATIONS

Operating Frequency........   14.3 kHz, 14.5 kHz, 14.7 kHz
Searchcoil Type...............   Monolithic (Carbon Fiber)
Searchcoil Size................   9 x 8
Cable Length....................   Approx. 3'
Audio Frequency..............   Approx. 293 Hz or VCO
Audio Output....................   1½" speaker & headphone jack
Headphone Compatibility..   ¼" stereo plug
Weight (may vary slightly)..   2.2 lbs
Battery Requirement.........   One 9 volt DC (alkaline)
Battery Life (typical)...........   10 to 20 hours
Optimum Temp. Range.....   30° to 100° F
Optimum Humidity ............   0 to 75% R.H.
Operating Modes..............   Pinpoint All Metal
........................................   Silent Search Discriminate

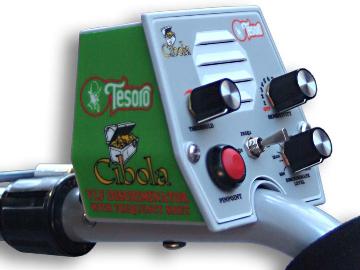

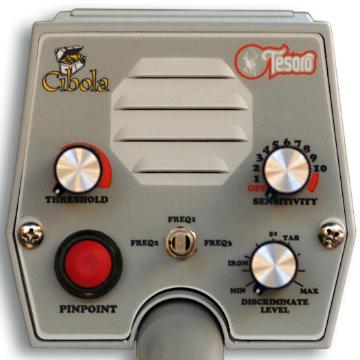

The Cibola (pronounced see-bow-lah) combines H.O.T. circuitry
with turn-on-and-go simplicity. It is designed for the treasure
hunter that does not want to bother with too many controls. The
Cibola is named after one of the fabled seven cities of gold that the
conquistadors were searching after and will simplify the search for
any treasures to be found.

The Cibola’s main search mode is an ED 180 Silent Search
discriminate. A threshold-based All Metal is accessed by the Push
Button Pinpoint mode. The ease of use for the Cibola makes it the
perfect detector for both the metal detecting novice as well as the
treasure hunter that has been around for a while.

FEATURES

MicroMAX Design
VLF 14 kHz Frequency
One Drop-in 9V Battery
Variable Threshold
Ultra-lightweight Design
9x8 Monolithic Coil
3-Piece Knockdown Pole
Lifetime Warranty

LIFETIME WARRANTY
Suggested Retail Price $425.00
Our Price (Standard Tone) $361.25

Our Price High Tone Model $376.25

SPECIFICATIONS

Operating Frequency..........   17.8 kHz
Searchcoil Type..................   Elliptical, widescan
Searchcoil Size..................   10" elliptical (length)
Cable Length......................   Approx. 8'
Audio Frequency................   Approx. 330 Hz to 550 Hz
Audio Output.......................
1½” speaker & headphone jack
Headphone Compatibility....   ¼” stereo plug
Weight (may vary slightly)....   3.5 lbs
Battery Requirement............   Eight AA cells (alkaline)
Battery Life (typical).............   20 to 30 hours
Optimum Temp. Range.......   30° to 100° F
Optimum Humidity...............   0 to 75% R.H.
Operating Modes................   All Metal (motion required)
..........................................   Silent Search Discriminate
All Metal Tuning Mode........   Fast Auto Tune
Pinpoint Mode.....................   No-Motion All Metal (no Auto Tune)

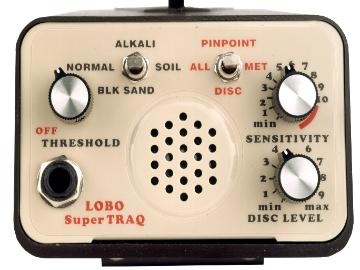

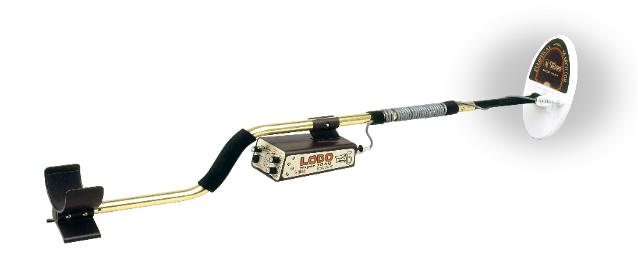

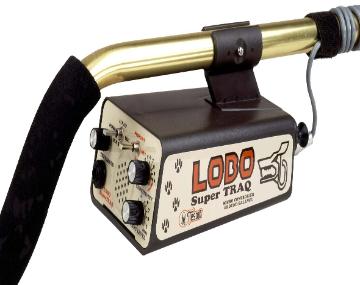

The Lobo SuperTRAQ is the pinnacle of electronic gold prospecting
technology. No other detector gives you the fast, accurate and
reliable ground tracking in normal and severe soils like the Lobo
SuperTRAQ. Tesoro's famous discrimination circuitry lets you relic
and coin hunt too.

The Lobo SuperTRAQ is simply one of the finest gold nugget metal
detectors you can buy. Tesoro's SuperTRAQ Computerized Ground
Tracking System solves the detectorist's greatest problem-ground
balancing. No matter where you hunt, the Lobo SuperTRAQ will
quickly self-adjust to eliminate minerals letting you find more gold
with ease. Discrimination circuitry with instant pinpointing at your
fingertips takes the awesome power of the Lobo SuperTRAQ into
every type of metal detecting you do.

LIFETIME WARRANTY
Suggested Retail Price $799.00
Our Price $679.15

SPECIFICATIONS

Operating Frequency....................   10 kHz
Searchcoil Type...........................   Concentric
Searchcoil Size............................   9 x 8
Cable Length...............................   Approx. 3’
Audio Frequency Target ID Tones.   Approx. 350 to 800 Hz
Audio Frequency All Metal VCO....   Approx. 350 to 950 Hz
Audio Output................................   2 ¼” speaker and head-phone
jack
Headphone Compatibility..............   ¼” stereo plug
Weight (may vary slightly).............   2.98 lbs.
Battery Requirement.....................   Eight AA (alkaline)
Battery Life (typical)......................   10 to 20 hours
Optimum Temperature Range.......   30° to 100° F
Optimum Humidity.......................   0 to 75% R.H.
Operating Modes.........................   No Motion All Metal
..................................................   Silent Search Discriminate
..................................................   Sum
...................................................   Notch Narrow/Wide

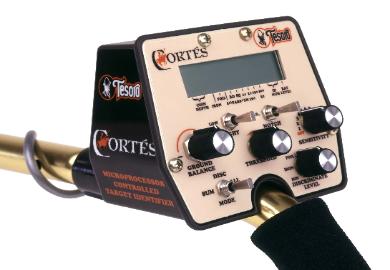

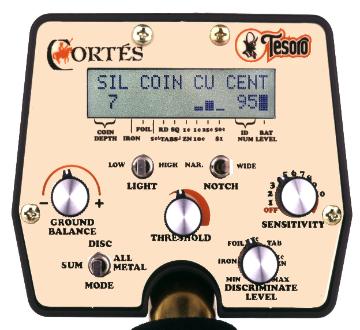

The Cortés represents the best combination of current and new
technologies that Tesoro has to offer. When Jack Gifford and Vince
Gifford set out to create a new target ID machine they each brought
with them different experience. Jack has over twenty-five years
experience designing some of the best analog detectors that have
been on the market. Vince brought with him a decade of computer
systems experience. Together, they have been creating new
technology that gives our detectors superior performance and keeps
them easy to use. Various parts of this technology have been finding

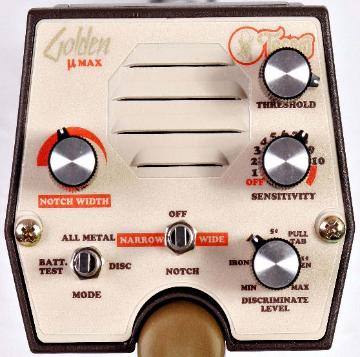

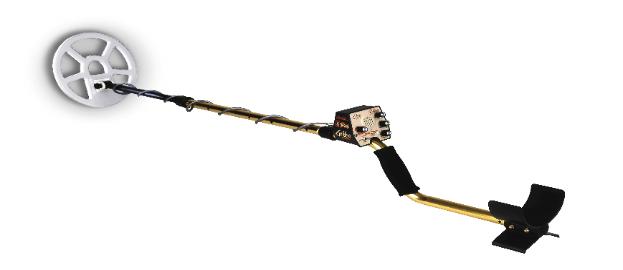

it's way into Tesoro detectors since the introduction of the Golden
µMax. The new Cortés represents all phases of our new
microprocessor technology combined with our tried and true analog
circuits to create a detector that has all of the high end features our
customers have asked for with user friendly Tesoro controls.

The first thing that you will notice is the control box and battery
holder configuration. The µMax housing was just not big enough to
hold the new circuit board so we moved the batteries down under
the arm bracket and increased the size of the box slightly. This
allows us to use a 12 volt system to work with the demands of the
target ID circuitry. It also gave us the ability to put a 2¼" speaker on
the Cortés. This will give better and louder target signals in the field.

The Cortés' 2x16 character LCD display will catch your eye as well.
This area is the information center of the detector. The top row is an
alpha/numeric display that gives a broad indication of your possible
target. One of five different categories are displayed. Also if the
target is overdriving the circuits, the display will tell you to lift the
coil for a more accurate reading. The alpha/numeric and bar graph
section of the display will remain blank until the coil passes over a
target. After the detectorist has decided to dig or ignore the target
the display will clear itself after six seconds of not receiving a signal.
The display works in all modes, regardless of the discrimination
setting. By clearing the display after six seconds the user is able to
tell if has passed over a new target that may have been
discriminated out. The detector may not produce an audio signal,
but the display will show a target reading. The detectorist then has
the choice to either go back and check the target or ignore it.

The bottom half of the display contains the real nuts and bolts
information that will help you to work the Cortés to its fullest
extent. The far right hand part of the display is a battery level
indicator. This gives an accurate measure of your current battery
level. On the far left-hand side is the probable depth indicator. The
Cortés uses the phase shift of the target to determine the probable
target and then looks at the amplitude of the signal to determine the
depth. For example: a nickel and a quarter are in the ground and
the quarter is deeper than the nickel; if we just went off of
amplitude change, the detector may read the two targets as being
the same depth. However, the Cortés would show the quarter as
being deeper because its phase shift response is different than that
of the nickel.

In the center of the lower display is a nine segment bar graph
display. The different segments represent the following possible
targets: iron; foil: nickel; round tab; square tab; zinc penny; copper
penny and dime; quarter; half and dollar. The graph shows what
the coil saw during the entire sweep of the coil. The targets metal
composition and orientation in the ground can cause "smearing" or
possible indication in more than one graph segment. For example:
pull tabs usually will not respond in a single segment but give
signals in two or three segments. To help the detectorist decide on
the target, we have also included an ID Number display next to the
bar graph.

The ID Number takes the largest part of the signal and converts it to
a two digit number. When Vince put together the scale for the ID
Number, he decided to put the most resolution in the middle range
of targets. This is the area where nickels, pull tabs and gold rings lie.
We know that iron will always be on the low end of the scale and
silver coins and jewelry will always be on the high end. So iron
targets will always give a reading of 0 and silver will always give a
reading of 95. The Cortés now gives you the ability to decide what
you want to dig. One of the hardest parts of designing detectors is
the fact that pull tabs can vary from place to place. But a hunter
working in the same area can use the ID Number to learn the
characteristics of the local pull tabs and effectively ignore them.

For those detectorists that prefer a notch filter discrimination, we
have also added a simple flip switch to activate either a narrow or
wide notch window. When the display is blanked, two "N"s or three
"W"s will appear on the screen. The N will indicate a narrow notch
window and will be in the round tab and square tab portion of the
graph segments. The wide notch window will cause a W to be in the
round tab, square tab and zinc penny segments. These indications
are an easy way to check what part of the scale is being notched out.
The notch indicators will only show when there is no target under
the coil. When there is a target signal, no matter if the target has
been discriminated or not, the display will show the information of
the target.

The Sum mode is another feature to help identify targets. While the
detector is in either the Discriminate or All Metal mode, the display
shows the target information from the entire sweep of the coil. Each
time the coil passes over the target the microprocessor generates a
new target ID reading. While this is nice for general searching, it
can be confusing while pinpointing. This is where the Sum mode
becomes useful. Pushing the springloaded switch into the Sum
mode causes the detector to start a multi-tone ID and averages all of
the coil passes over the target. The tone ID has nine different tones
and relates directly to the bar graph segments. The higher up on the
graph the target is, the higher the pitch of the audio signal.
Averaging the coil passes over the target gives the detectorist the
ability to get rid of most of the signal noise that prevents making an
accurate target identification. Here's how it works: when the
detectorist gets a target signal that he wishes to check out, he
pushes and holds the Mode switch in the Sum position. Shortening
his coil sweep to only a two or four inch sweep he passes the coil
over the target three to seven times. The short multiple sweeps give
the microprocessor the chance to sum the passes and average them.
During the sweeps the audio ID will start at the lowest signal and
will get progressively higher in pitch until there is no more change.
When this happens the detector is giving the most accurate ID
possible. Then the user can decide if he wants to dig or ignore the
target.

All of these new features are complimented by Tesoro's easy to use
controls. No touch pads or scroll through menus. Set the detector
how you like it by adjusting the knobs on the front of the machine.
The Cortés features an On/Off Sensitivity knob; a Discriminate Level
knob; a Manual Ground Balance knob; a Mode Switch with All
Metal, Discriminate and Sum mode settings; a Notch Width switch
with Off, Narrow and Wide settings and a Light switch to control
the LCD backlight with a High, Low, and Off positions.

The Cortés fits into a package that weighs just less than three
pounds (including the batteries!) and is covered under Tesoro's
Lifetime Warranty. The Tesoro Cortés makes target ID easy and fun.
Contact your local dealer or the factory for more information.

LIFETIME WARRANTY
Suggested Retail Price $849.00
Our Price $721.65

SPECIFICATIONS

Operating Frequency.......   10 kHz
Searchcoil Type..............   Concentric
Searchcoil Size...............   9 x 8
Cable Length...................   Approx. 3'
Audio Freq. All Metal VCO   Approx. 350 to 950 Hz
Audio Output....................   2¼" speaker and headphone jack
Headphone Compatibility..    ¼" stereo plug
Weight (may vary slightly).   2.98 lbs
Battery Requirement.........   Eight AA (alkaline)
Battery Life (typical)..........   10 to 20 hours
Optimum Temp. Range.....   30° to 100° F
Optimum Humidity............   0 to 75% R.H.
Operating Modes.............   No Motion All Metal
.......................................   Silent Search Discriminate

The DeLeón is a Target Identification Detector or T.I.D. The DeLeón
is designed as an easy to use, turn-on-and-go detector. The faceplate
has only four controls: Sensitivity, Discriminate, Threshold and a
Mode Switch. It uses the same circuitry as the Cortés, so you can
expect the same depth and sensitivity from the DeLeón that the
Cortés is well known for.

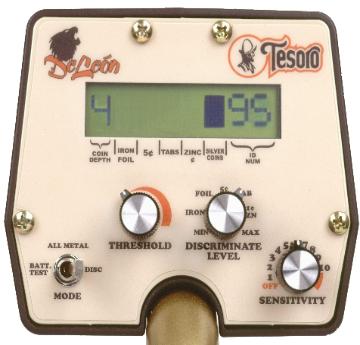

The DeLeón's display screen is one character high by eight
characters wide. It is larger and easier to read than the Cortés
display but does not carry as much information. Starting from left
to right on the faceplate, you will see that the DeLeón has a Coin
Depth reading, a five segment bar graph and a two-digit Target ID
Number. The bar graph shows several categories for ID purposes,
but we recommend that it be used with the ID Number for the most
accurate information.

LIFETIME WARRANTY
Suggested Retail Price $599.00
Our Price $509.15

SPECIFICATIONS

Operating Frequency....... 10 kHz
Searchcoil Type.............. Concentric
Searchcoil Size............... 9 x 8 Searchcoil
Cable Length Approx....... 3 foot
Audio Frequency.............
.......................................
All Metal (VCO) 260 to 420 Hz
Disc. 4 tones:240 Hz, 315 Hz, 370 Hz, 500 Hz

Audio Output.................... 1 1/2 inch speaker and headphone jack
Headphone Compatibility. 1/4 inch stereo plug
Weight.............................. 2.2 pounds (may vary slightly)
Battery Requirement.......... One 9 volt DC (alkaline)
Battery Life........................ 10-20 hours (typical)
Optimum Temp. Range..... 30° F to 100° F
Optimum Humidity Range.. 0 to 75% R.H.
Operating Modes..............
........................................
........................................
........................................ Silent Search Discriminate
Notch Norm
Notch Wide (Larger window)
No-Motion All Metal

All Metal Tuning Mode....... Fast Auto Tune

Helping You Sort Things Out

The µMax detector that you have been waiting for is here - The
Golden µMax. This is a detector that only Tesoro could build. Full
size depth, sensitivity, Four Tone Audio ID and a user adjustable
Notch Filter Discriminate all placed into the lightest detector
housing on the market. At less than 2 ½ pounds, the Golden µMax
lets you control what you want to find. Our adjustable notch
window lets you, not the engineers, decide how to pick through the
pull tabs to find the nickels and gold rings, while the ED 120
discrimination knocks out all of the nasty iron. The tone ID will also
give you a great idea of what your target is. The Golden µMax will
help you define your targets and make better use of your detecting
time.

FEATURES

MicroMAX Design
Low Noise Circuitry
9 x 8 Coil
VLF 10 kHz Frequency
One Drop-in 9 volt Battery
Silent Search Discriminate Mode
No-Motion All Metal Mode
4 Tone Audio ID
Positive Pole Locking System
Interchangeable Coils
Lifetime Warranty
Built-in Mineral Rejection

LIFETIME WARRANTY
Suggested Retail Price $529.00
Our Price $449.65

SPECIFICATIONS

Operating Frequency..........   10.6 kHz
Searchcoil Type..................   Round, open center concentric
Searchcoil Size..................   8" diameter
Cable Length......................   Approx. 3’
Audio Frequency................   Approx. 630 Hz
Audio Output.......................
1½” speaker & headphone jack
Headphone Compatibility....   ¼” stereo plug
Weight (may vary slightly)....   2.2 lbs.
Battery Requirement............   One 9 volt DC (alkaline)
Battery Life (typical).............   10 to 20 hours
Optimum Temp. Range.......   30° to 100° F
Optimum Humidity...............   0 to 75% R.H.
Operating Modes................   Silent Search All Metal
..........................................   Silent Search Discriminate

Strong, Simple, Silent... Still

The Silver Sabre series has had a very long history with Tesoro
Electronics. It was first introduced in 1983. In a time when "lunch
box" detectors were the norm, the original Silver Sabre was
perceived as a toy unit. There have been many men who bought one
for the wife and wound up using it because it worked as well as any
other detector on the market. Advertised as "strong, simple, silent",
the Silver Sabre has gone through many changes over the years. The
Silver Sabre Plus added a no motion all metal circuit. The Silver
Sabre II added a new plastic housing and new Hybrid Circuit
technology. Several years ago we introduced the Silver Sabre µMax
with an incredibly small housing and Max Boost technology. A
number of men bought one for their wife and wound up using it
because it worked as well as any other detector on the market.
(Sounds familiar doesn't it?)

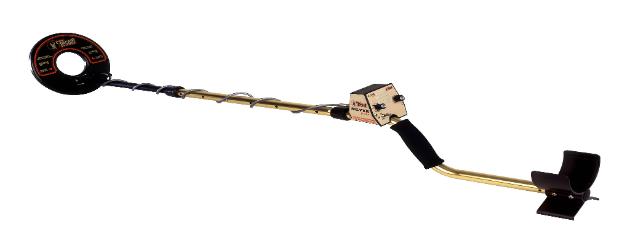

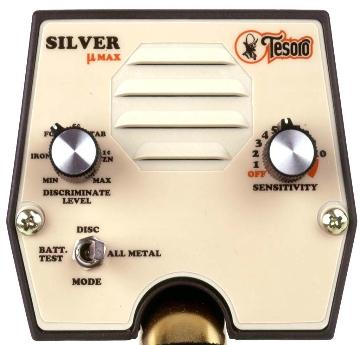

We have decided to bring the Silver back full circle to where it
started. The original Silver Sabre was a turn on and go detector with
Silent Search discrimination and all metal modes. The new Silver
µMax returns to its roots and offers strong, silent and simple
operation once again. The Silver µMax uses a microprocessor to
control the audio tone and battery test. It will come with an 8"
Concentric coil and our latest plastic faceplate. The price of the
Silver µMax will be $299.00.

FEATURES

Microprocessor Technology
MicroMax Design
Low Noise Circuitry
VLF 10 kHz Frequency
One Drop-in 9 volt Battery
Push Button Battery Test
Silent Search Discriminate Mode
Silent Search All Metal Mode
8" Concentric Coil
Interchangeable Coils
Built-in Mineral Rejection
Lifetime Warranty

LIFETIME WARRANTY
Suggested Retail Price $299.00
Our Price $254.15

SPECIFICATIONS

Operating Frequency.............   12 kHz
Searchcoil Type.....................   Round concentric, hardwired
Searchcoil Size.....................   5.75" or 8"
Cable Length.........................   Approx. 3’
Audio Frequency...................   Approx. 630 Hz
Audio Output..........................
1½” speaker & headphone jack
Headphone Compatibility.......   ¼” stereo plug
Weight (may vary slightly).......   2.2 lbs.
Battery Requirement...............   One 9 volt DC (alkaline)
Battery Life (typical)................   10 to 25 hours
Optimum Temp. Range..........   30° to 100° F
Optimum Humidity..................   0 to 75% R.H.
Operating Modes...................   Silent Search Discriminate

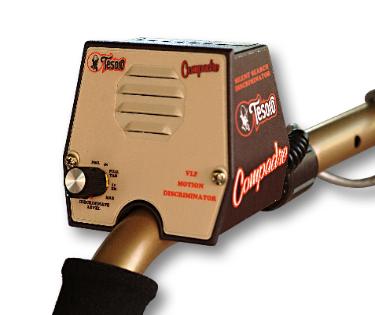

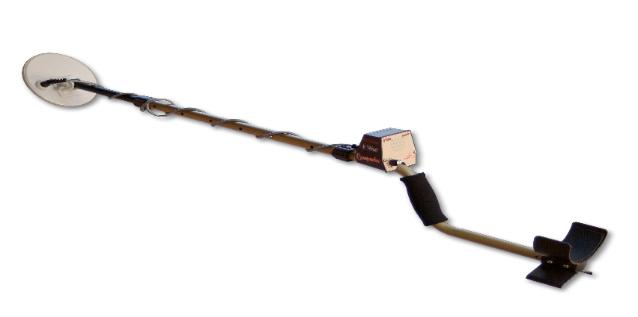

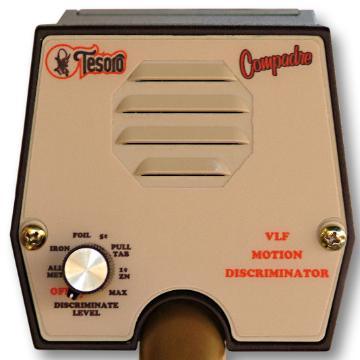

The Tesoro Compadre was designed with the idea that less is more.
This modest machine can do a lot of the same things that its bigger
brothers can do. It works great for coin hunting, competition
hunting and relic hunting, but it does it without any excess knobs.
Switch on the detector and you're working in a silent search,
motion all metal mode. The farther you turn the knob, the more
discrimination you can bring to bear on those trashy sites. The
Compadre now comes standard with a 5.75" round concentric coil.
The depth is equivalent to the original 7" concentric, plus the new
coil reduces the likelihood of target masking in extremely trashy
ground. It also gives you the ability to get into and around natural
obstacles like bushes, fences, and playground equipment.

The Compadre has it all. One knob simplicity for the beginner and
high gain circuitry and the famous Tesoro ED-180 discrimination
for the advanced user. If one detector can do all of this, maybe less
is more.

LIFETIME WARRANTY
Suggested Retail Price $189.00
Our Price 5" coil-$160.65
       8" coil-160.65

SPECIFICATIONS

Operating Frequency..........   12.5 kHz
Searchcoil Type..................   Round, open center concentric
Searchcoil Size..................   8" diameter
Audio Frequency................   Approx. 270Hz
Audio Output.......................
Stereo Piezo Headphones
Weight..................................   Less than 4½ lbs.
Battery Requirement............   Eight AA DC (alkaline)
Battery Life (at preset)............   10 to 20 hours
Optimum Temp. Range.......   30° to 100° F
Operating Modes................   No-Motion All Metal - (Fast & Slow
Tune)
..........................................   Normal Mode
............................................   Salt Mode
............................................   Silent Search Motion Discrim-inate
Maximum Depth Rating..........   200 ft.

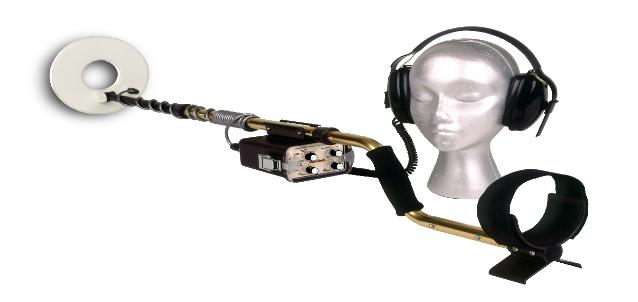

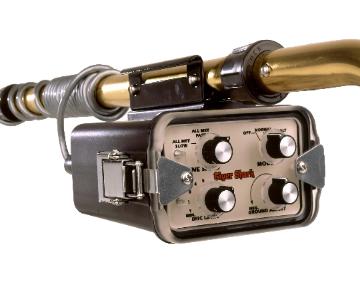

The Tiger Shark uses microprocessor technology to create a true
dual function machine. In Normal Mode, the Tiger Shark works like
any other Tesoro detector. It uses the same great ground balance
and discrimination features that made the Bandido series so
successful. On land, the Tiger Shark can be used for coin and relic
hunting and even gold prospecting. By using the four controls on
the outside, you can fine tune your detector to handle whatever
conditions you are working in.

Working in the wet salt areas is where the Tiger Shark outshines the
land detectors. In land conditions, the most crucial adjustment is
using the ground balance to tune out mineralization. In wet salt
conditions, changes in the conductivity in the sand cause most of
the problems. The Tiger Shark uses a completely different set of
internal settings in the SALT Mode than in the NORM Mode. There
are no special controls or techniques to remember.

The Tiger Shark continues in the tradition of other great Tesoro
underwater machines by having interchangeable coils available.
Along with the 8" coil that comes standard with the detector, we
also manufacture a 7" and a 10 1/2" coil.

LIFETIME WARRANTY
Suggested Retail Price $749.00
Our Price $636.65

SPECIFICATIONS

Operating Frequency............   600 pps
Searchcoil Type....................   Printed Spiral
Searchcoil Size....................   8" diameter
Audio Frequency..................   Approx. 220-450 Hz
Audio Output.........................
Stereo Piezo Headphones
Weight..................................   Less than 4½ lbs.
Battery Requirement..............   Eight AA DC (alkaline)
Battery Life (at preset)............   10 to 20 hours
Optimum Temp. Range.........   30° to 100° F
Optimum Humidity.................   0 to 75% R.H.
Operating Modes..................   VCO Motion All Metal
............................................   Adjustable Audio Frequency All Metal
Maximum Depth Rating..........   200 ft.

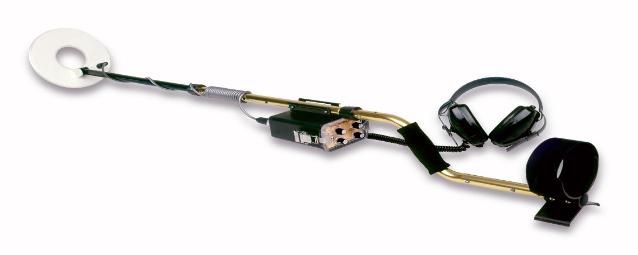

Our new Sand Shark combines time-proven PI circuits with the
latest digital technology creating the first microprocessor controlled
PI detector for the new Millennium.

Pulse Induction (PI) detectors have always been the natural choice
for working wet salt beaches. Their circuitry and single loop coils
will not see changes in salt-water conductivity that drive a VLF-style
detector crazy. Add Tesoro Electronics' exclusive interchangeable
Printed Spiral coils (available in four sizes) and you create a
fantastic PI detector. But we didn't stop there.

The Sand Shark has two distinct operating modes: VCO and
Normal. When working in the VCO mode, as targets get closer to the
coil, the threshold generates a louder, higher pitched tone great for
pinpointing. The Normal mode works with a single tone and is used
for beachcombing and other prolonged searches.

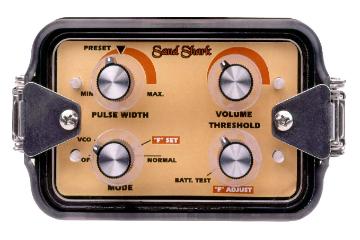

We've added a microprocessor to help you customize the detector to
your specific needs. Our Pulse Width control allows you to tune
your detector to the best balance of depth, sensitivity, and battery
life. You can also change the Normal mode audio frequency. Simply
use the "F" Adjust knob to set the tone and you're ready to go. The
Sand Shark also has a new drop-in battery compartment for quick
and easy changes.
The Tesoro Sand Shark will change the way that you think about
pulse detectors.

LIFETIME WARRANTY
Suggested Retail Price $679.00
Our Price $577.15

TESORO ACCESSORIES
COILS & COIL COVERS
Coils—Cibola, Lobo SuperTRAQ, Tejón & Vaquero

The 575 coil is a 5¾-inch concentric-style coil. It has been designed
to provide great discrimination when working in trashy areas. The
575’s smaller footprint will find the treasures without having to
worry about most masking effects. When combined with the
powerful circuitry of the Tejón, it will allow you to cherry pick the
trash-infested sites.

$109.65 Concentric including scuff
$109.65 Widescan with scuff

The 12x10 widescan is designed to penetrate deeply in highly
mineralized sites that are not burdened with an abundance of junk.
The Double D windings “see” 70% less ground effect than a
concentric-style winding. This will give you smoother operation in
areas where the ground matrix tends to shift. Both coils will utilize
our Monolithic shielding. Carbon fibers and graphite powder have
been mixed into the raw plastic used to form the coils. This
technique provides an even RF shielding across the entire surface of
the coil.

$143.65 Including Scuff

The 9x8 concentric comes standard on the Tejon, Vaquero and
Cibola.

$ 126.65 Including Scuff

Coils-Cortez, Deleon, Golden & Silver µMax
(These coils fit most older models as well!)

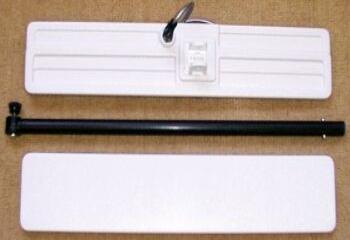

CleanSweep Coil

This genuine Tesoro coil measures 18 inches long, 3.6 inches wide
(with scuff) and weighs in at 1.3 pounds (Sand Shark version
weighs 1.8 pounds). The CleanSweep's sensitivity is consistent from
toe to heel and is designed to cover a large area quickly. Depth
figures range between a 4" coil and a 7" coil.

Full coil length sensitivity
Widescan design resists changes in mineralization

Easy pinpointing

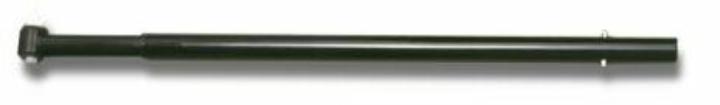

Comes with scuff cover and lower pole
Two models are available—one for the µMax detectors and one for
the Pulse Induction like the Sand Shark. Both retail for $199.00.
Our Price $169.15

The 4" round concentric coil for very trashy areas. This is an
amazing little coil in trash and is a must have!
Retails for $89.00-Scruff cover not included.
Our Price $75.65

4" Scruff Cover
Retail $6.00
Our Price $5.10

5.75 Concentric Coil With Scuff
Retail $99.00
Our Price $85.15

7" Round Concentric Coil
Retail $89.00
Our Price $75.65

7" Round Wide Csan Coil
Retail $89.00
Our Price $75.65

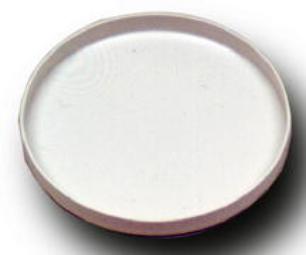

7" Round Scuff Cover
Retail $8.00
Our Price $6.80

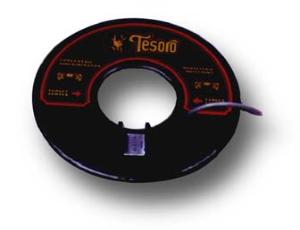

8" Concentric Donut Coil
Retail $99.00
Our Price $85.15

8" Concentric Donut Scuff Cover
Retail $8.00
Our Price $6.80

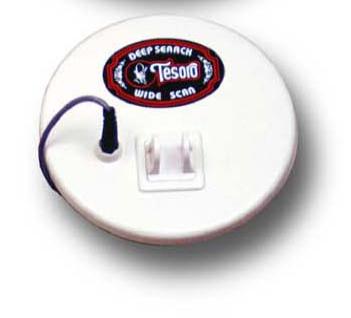

8 1/2" Widescan Coil
Retail $89.00
Our Price $75.65

8 1/2" Widescan Scuff Cover
Retail $8.00
Our Price $6.80

9x8" Concentric Spider Coil
Retail $139.00
Our Price $118.15

9x8" Scuff Cover (Not Pictured)
Retail Price $12.00
Our Price $10.20

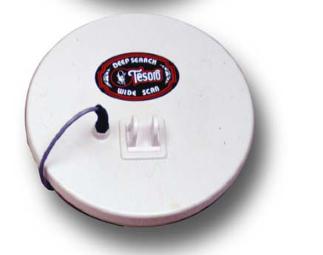

11" Round Widescan Coil
Retail $99.00
Our Price $84.15

11" Widescan Scuff Cover
Retail $14.00
Our Price $11.90

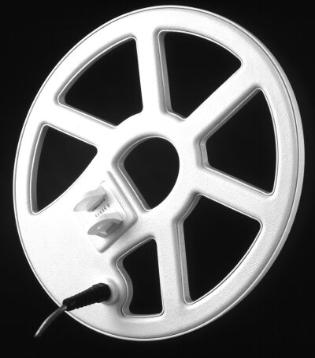

12x10" Concentric Spider Coil
Retail $159.00
Our Price $127.20

12x10" Scuff Cover (Not Pictured)
Retail $22.95
Our Price $19.51

MORE ACCESSORIES
